Precision CNC
Machining Services

Looking for a reliable, quick-turn supplier of machined plastic and metal components? our unmatched in-house capacity ensures your parts are shipped on-time, every single time.
  • Instant Quotes & DFM Feedback
  • Parts as Fast as 2 days
  • Tight Tolerances
  • Hand Metrology, Laser & CMM Inspections
Relied on by

CNC Machining Process – Our CNC Machining Capabilities

As one of the fastest-growing precision CNC machining services China su ppliers, the following machining capabilities at Junying are available to serve your needs of CNC machined parts, from rapid prototyping to precision parts and tooling machining, to end-use production.

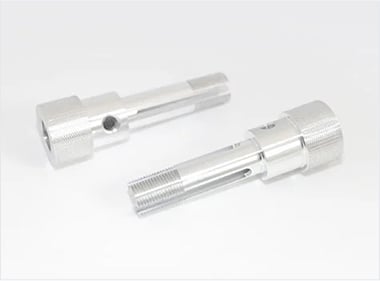

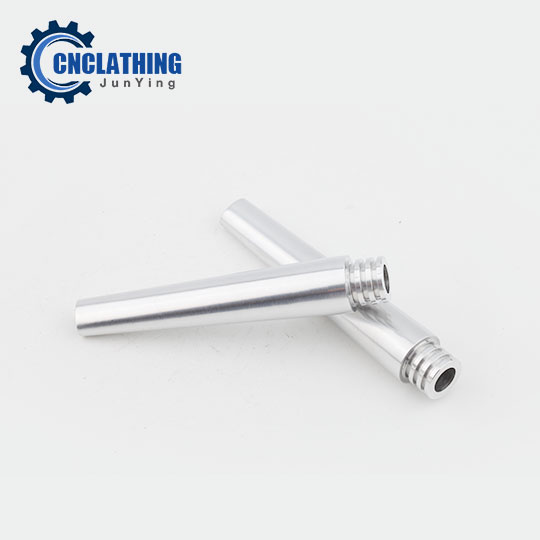

A technology through which the material block fixed on the CNC turning center or lathe rotates with high speed, while the cutting tool moves into the rotating axis to process the workpiece and get CNC turned parts with cylindrical features.

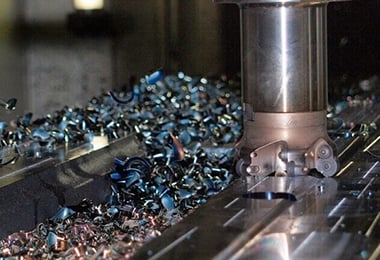

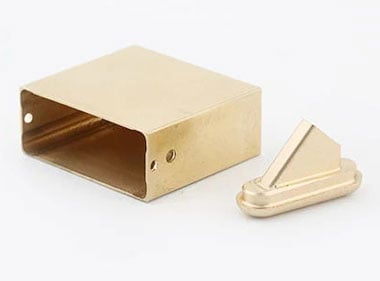

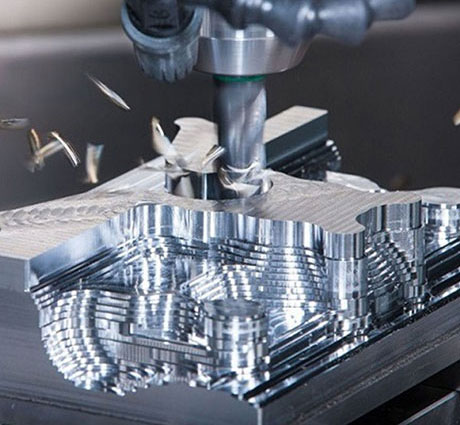

Milling is often regarded as the most common machining process, which refers to utilizing a CNC milling cutter to do circular motion and create milled parts with certain shapes and details in a stationary piece, including slots, holes, notches, grooves, etc.

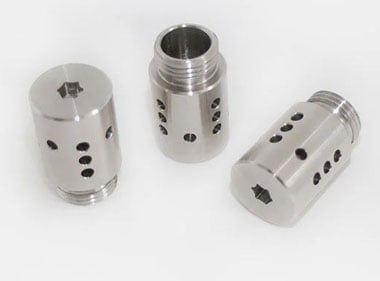

A computer-controlled cutting process of using a drill bit to remove material from the workpiece while rotating and producing a circular-shaped hole in a workpiece or solid block.

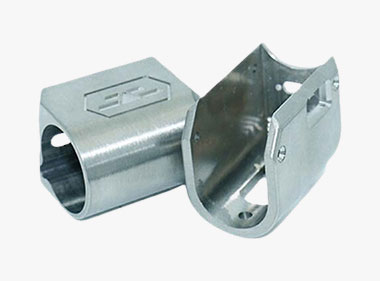

A subtractive manufacturing method that uses a variety of different cutting technologies combined with computer numerical control software to remove excess materials from the block and create specific 2D or 3D shapes.

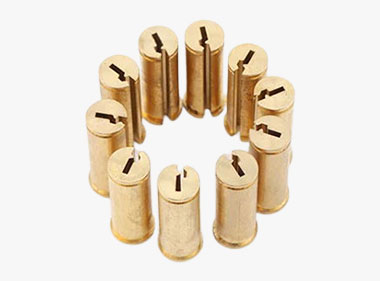

Wire EDM, also known as wire-cut EDM, is a process of discharging the electrified current through a thin wire, which acts as the cathode, to cut or shape a workpiece following the desired cutting path.

CNC Machining Tolerances

The general tolerances of CNC machining parts can be achieved up to +/- 0.005″ or +/- 0.127 mm in accordance with ISO 2768 when cutting metals, and for plastics, it is usually two times that. Below is a table of some specific tolerances and size limitations, but the final tolerance depends on material, technique and drawing.
Max Part Size

Milling: 2000 x 1500 x 200 mm; Turning: 990 mm (length), 431mm (diameter)

Min Part Size

10 x 10 x 10mm

Linear Dimension

Metals & PEEK: +/- 0.01 mm;

Other Plastics: +/- 0.05 mm;

No Drawing:ISO 2768 Medium;

Hole Diameters

Metals & PEEK: +/- 0.008 mm;

Other Plastics: +/- 0.05 mm;

No Drawing:ISO 2768 Medium;

Shaft Diameters

Metals & PEEK: +/- 0.004 mm;

Other Plastics: +/- 0.05 mm;

No Drawing:ISO 2768 Medium

CNC Machining Materials

Junying CNC services work with a large selection of metal, plastic, and other types of materials.

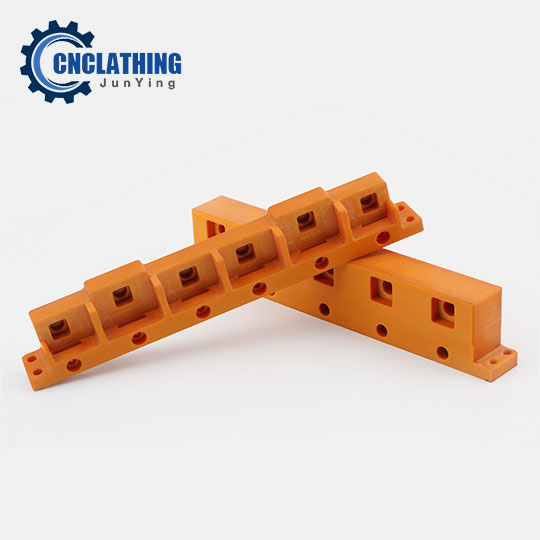

Plastic

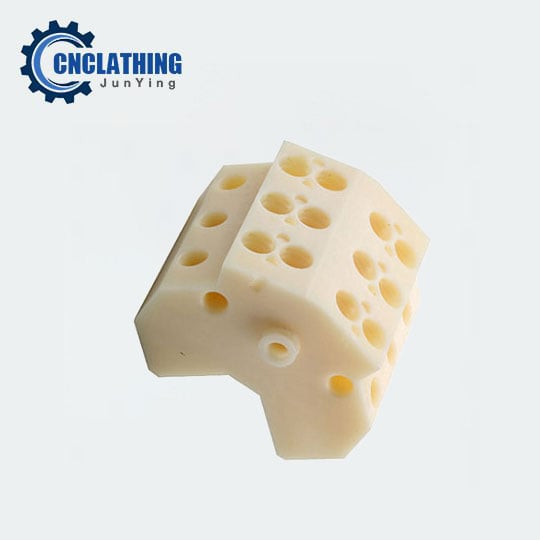

POM (Delrin), ABS, HDPE, Nylon, PLA, PC, PEEK, PMMA (Acrylic), PP, PTFE, etc.

Metal

Aluminum, Steel, Stainless Steel, Brass, Copper, Titanium, etc.

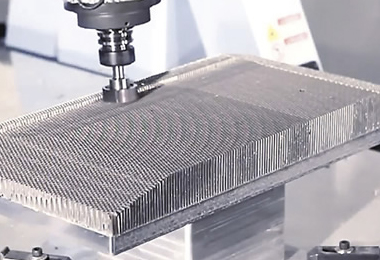

Composite

Carbon fiber, PC glass, PA glass, etc.

CNC Machining Finishes

You can choose a wide selection of metal surface finishing services after machining at Junying CNC machining manufacturer to improve the appearance, surface smoothness, corrosion resistance and other performance of your CNC machined parts. Two surface finishes can be applied on the same part.
Finishing Description Materials
Standard/As machined Machines and deburrs parts, chamfers edges All available metals
Bead Blast Reduce machining marks Aluminum, Titanium, Stainless Steel, Brass
Anodizing Type II Creates a thin, porous, corrosion-resistant coating Aluminum
Anodizing Type III (Hard coat anodizing) Creates a hard, thick, wear-resistant porous oxide Aluminum
Passivation Improves corrosion resistance Steel, Stainless Steel
Powder coat Creates strong wear and corrosion-resistant coating Aluminum, Steel, Stainless Steel
Tumbling Removes sharp edges, burrs, and marks Aluminum, Steel, Stainless Steel, Brass, Copper
Electropolishing Improves brightness and reduces corrosion Steel, Stainless Steel
Nickel Plating Creates a nickel coating to resist corrosion, oxidation and wear Aluminum, Steel, Stainless Steel
Zinc Plating Creates a zinc coating to resist corrosion, oxidation and wear Steel, Stainless Steel
Black Oxide Minimizes light reflection and improves corrosion resistance Steel
Our Quality Promise

Inspection reports can be delivered with goods as your request CMM, laser scanners, and other instruments to inspect CNC parts Long-term or seriously vetted manufacturing partners ISO 9001:2015 certification and CE certification Ensure the specification of each part is correct Certification and test reports of materials are available

The Process of Your Order

Get a quote
Upload your design file through our online quote system.
Order Placement
Once the specification and price are confirmed, place your order with delivery details.
Product Manufacturing
Select the most appropriate production technique and material, then begins quickly.
Quality Inspection
Check if the quality and function of all parts reach the requirement.
Shipping & Delivery
After properly packaged, arrange the shipping according to the order.

Want to get an online CNC machining quote instantly?

Get Your Quote
CNC Machining FAQs
1. What is CNC Machining?

CNC (Computer Numerical Control) Machining is a subtractive manufacturing method, which adopts computerized devices to remove the extra materials from the blank and complete required tasks with CNC machine tools, to produce the final designed CNC machining parts. The machine tool, blade material, speed and feed, blade angle, cutting parameters, coolant, workpiece material, and more factors will affect the quality of the CNC machining service.

2. How does CNC Machining work?

The CNC machining process generates the final part through the subtraction of material. CNC machines are run by digital computers that control the movement of the equipment. The process of CNC machining will go through:

– Load the CAD (Computer Aided Design) file into CAM (Computer Aided Manufacturing) software.

– Determine tool paths based on the part geometry.

– CAM software creates digital instructions or G-Code tells the machine what to do and how to do it.

– CNC machines execute the operations as the programming language.

3. What’s the difference between CNC machining and conventional machining?

– Cost. Conventional machining is often less expensive, more cost-effective, and more efficient for smaller jobs. CNC machining is more expensive for little work, but it is more efficient and cost-effective for larger jobs.

– Production. The final conventionally machined product’s quality is mostly determined by the machine technician’s or operator’s skills and talents. Geometry is encoded into the software in CNC machining, reducing the risk of human error in the quality equation.

– Repeatability. Because it is impossible to guarantee a high level of part consistency due to the human factor, traditional machining is best suited for short production runs or a single unit. Because machines are controlled by computer commands, it is simple to create similar parts or components, making CNC machining ideal for the mass production of exceedingly consistent things.

– Requirements. Each machine requires a separate operator, and directing the tools necessitates a large degree of specialist involvement. To make a variety of items, operators of conventional machining must have extensive knowledge, talents, and experience. Because the CNC process requires minimal operator involvement, a single operator may run numerous machines with a high degree of accuracy and precision, lowering labor costs.

4. What industries use CNC machining or CNC parts?

CNC machining offers parts, components, and products for almost all industries, typical applications are including automotive, aerospace, electronics, agriculture, food, medical, oil and gas, military, marine, household goods, semiconductor, consumer, etc.

5. Why use CNC machining?

CNC machining is a profitable manufacturing method for precision components, it brings plenty of advantages.

– Minimize the material waste

– Avoid human errors and defects

– Higher accuracy and more efficient production

– Mitigate the possibility of accidents

– Bring down the manufacturing cost

– Decreases the energy losses

6. What are the standard tolerances of CNC machining?

± 0.005″ or 0.13mm is the standard tolerance for machined metal parts, and +/- 0.010″ is common for plastic parts. The specific tolerance is depending on the material and drawing. We can discuss tight tolerances based on your drawing.

7. How much does CNC machining cost?

When you start a project, you should know the cost of the CNC machining service needed. In short, the CNC machining cost is determined by the material, part size, machine type, design complexity, quantity, etc. Below are some typical machining costs in different conditions.

– 3-axis CNC Turning: 20$ per hour

– 3-axis CNC Milling: 20$ to 30$ per hour

– 4-axis or 5-axis CNC Milling: 35$ to 50$

– Aluminum 6061: $25 per block

– Stainless steel 304: $90 per block

– ABS: $17 per block

– Nylon 6: $30 per block

In addition, there are also additional costs that need to be included in the total cost, such as the surface treatment or post-processing cost when the part require special surface finishing service, and shipment cost, especially for a large amount of parts or large-sized products.

How do you know the CNC machining cost? We have a particular system to calculate the cost of machined parts quickly from a CAD file, if you want to know the price of components, you can go to our online quoting page, and upload your CAD drawing to get an instant CNC machining quote. Our quote is completely free and supports multiple formats, just simply drag your 3D file to the correct place and leave your custom requirements, and you can find how much your custom part cost with CNC service.

8.How to reduce the cost of CNC machined parts?

To reduce or save CNC machining costs, you can start with those factors that affect the cost.

– Choose the right material within your budget. For example, aluminum is one of the cheapest metals to machine and it is the proper material for many industries.

– Optimize your design. The drawing features will affect the machining time and difficulty, choosing the right wall thickness, radii, and other features will save time and cost.

– Reduce complexity. The more complex the part is, the more expensive it will be.

– Consider the size of the workpiece. The less material you use, the lower the cost will be.

– Set-up costs. Reduce the number of part rotations or repositioning needed to minimize the set-up cost.

– Tolerances. Only use tight tolerance when it is essential.

– Reduce surface treatment. Too many surface finishes will inevitably increase the total price.

9. What is CNC Machining Center?

When it comes to the equipment for CNC machining services, you should understand the machining center. A CNC machining center is primarily an advanced CNC manufacturing machine tool that based on a computer-controlled automation system, can perform a variety of machining operations with high precision, to modify the shape of the workpiece or part to be machined. There are two types of machines. One of them featured in the material to be processed is fixed, attached and stationary to the machine, while the cutting tool moving to work, which is suitable for square or rectangle shapes, another type is reverse, the part is rotating while the tool remains static, allows to mechanize other types of pieces. For example, the common CNC milling machines with an automatic tool changer, a table that clamps the workpiece in place, and an enclosure are classified into the CNC machining center. The spindle orientation is its most fundamental defining characteristic. According to the number of axes, there are 3-axis/4-axis/5-axis machines.

10. What are the different types of CNC machines

You can choose a variety of different CNC machines according to your budget, material and part to be processed.

– CNC lathe machines

– CNC milling machines

– CNC drilling machines

– CNC routers

– CNC plasma cutting machines

– CNC laser cutting machines

– CNC waterjet cutting machines

– CNC electrical discharge machines

11. Where can I learn more about CNC design?

Online CNC Machining Services

Want to shorten production cycle and reduce cost of your machinery components? Integrated multiple advanced technologies, CNC Machining Services can simplify the manufacturing process and speed up large batch production of machined components, as well as achieve a higher level of accuracy and precision. Junying provides rapid online CNC machining according to customer requirements. Send your CAD files or inquiry to us, a fast, free online CNC quote of required CNC components will be back. Get your CNC Machining Parts into processing in the shortest time.

CNC Machining
Online CNC Machining

Precision CNC Machining Services – Custom China CNC Machining Parts Manufacturer & Factory

CNCLATHING.COM – As an accomplished CNC machining company and CNC shop, Junying Metal Manufacturing Co., Ltd has been specialized in OEM CNC lathing, custom CNC machining parts production and rapid CNC machining services China for over 16 years and always maintaining the highest standard in delivery speed and reliable quality of precision CNC manufacturing components. With the help of high-level technology and efficient equipment, as well as rigorous attitude, we passed the ISO9001:2015 quality certification, which supports the long-term development of Junying CNC milling services, CNC turning services, CNC milling-turning, CNC drilling services, 3/4/5 axis machining, gear machining services, CNC machining China custom parts and service, small parts machining, etc. Junying professional CNC parts machining involves CNC metal parts manufacturing, plastic CNC machining, and some difficult materials. Our CNC machining products can be utilized in a broad range of industries.

Precision CNC Machining of china

Applications of Junying CNC Machining Services

CNC machining parts are all around you, they may be important components of your car and also can perform vital functions in your electrical equipment. Junying is an accomplished CNC supplier that engaged in a broad range of CNC machining applications.

Advantages of Junying CNC Machining Services

  • Efficient CNC machining factory for mass production rapid prototyping service
  • Average 7 days turnaround time and 99.85% on time delivery
  • Multiple options of machining materials to meet specific properties.
  • Fast free quotation within 24 hours after inquiry
  • High customer satisfaction and loyalty
  • Rich design and manufacturing experience

If you are looking for quality CNC machining services near me, our low cost CNC custom machining will review the design, build your quote, assess the cost and get your non-metal or metal fabrication parts into production orderly and efficiently.

Advantages of CNC Machining Services

What is CNC Machining?

CNC (Computer Numerical Control) Machining is a subtractive manufacturing method, which adopt computerized devices to remove the extra materials from the blank and complete required tasks with CNC machine tools, to produce final designed CNC machining parts. The machine tool, blade material, speed and feed, blade angle, cutting parameters, coolant, workpiece material and more factors will affect the quality of the CNC machining service.

  • Benefits of CNC Machining:

    – Simplified production process
    – Lower labor cost with higher automation
    – High and specific precision, accuracy, tolerance, dimensions can be achieved.
    – Rapid prototyping for medium to high volume output

What is CNC Machining

How Does CNC Machining Work?

CNC machining process generates a part on a CNC machine from a computer design file. The process will go through:

  • Load the CAD (Computer Aided Design) file into CAM (Computer Aided Manufacturing) software
  • Determine tool paths based on the part geometry
  • CAM software create digital instructions or G-Code tells machine what to do and how to do
  • CNC machines take the execute the operations as the programming language

What is CNC Machining Center?

When it comes to the equipment for CNC machining services, you should understand the machining center.
CNC machining center is primarily an advanced CNC manufacturing machine tool that based on a computer-controlled automation system, can perform a variety of machining operations with high precision, to modify the shape of the workpiece or part to be machined. There are two types of the machines. One of them featured in the material to be processed is fixed, attached and stationary to the machine, while the cutting tool moving to work, which is suitable for square or rectangle shapes, another type is reverse, the part is rotating while the tool remains static, allows to mechanize other types of pieces. For example, the common CNC milling machines with an automatic tool changer, a table that clamps the workpiece in place and an enclosure are classified into the CNC machining center. The spindle orientation is its most fundamental defining characteristic. According to the number of axes, there are 3-axis/4-axis/5-axis machines.

How Does CNC Machining Work?
